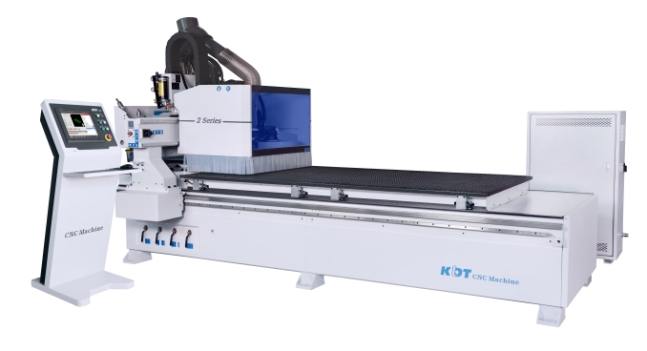

 CNC Machine



Brief: Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. The software interface is generally available, easy to operate and control. The following is about CNC Machine, we hope to help you better understand of it.

1. Heavy duty and high precision machining body, ensure long period running;
2.Max speed of X/Y/Z is 60/60/20 m/min;
3.Standard with Delta controller and computer;
4.Standard with KDT 9KW spindle, 12 disc servo control tool magazine;
5. Automatic alarm device, easy to check equipment failure.

CNC Machine   Features:




◆High-rigidity frame, 4-zone vacuum chamber, double vacuum adsorption, ensuring that the small plate has enough adsorption force.






◆KDT 9V boring head (2408DE model)






◆Delta 0.85kW servo motor






◆Z axis use PMI screw






◆KDT 9KW ISO-30 spindle






◆Delta bus system+PC control






◆Taiwan YYC helical tooth Rack&Pinion






◆Tool Magazine:
12 servo control tool magazine, with ISO-30 tool holder, disc auto tool change, quickly and precise.

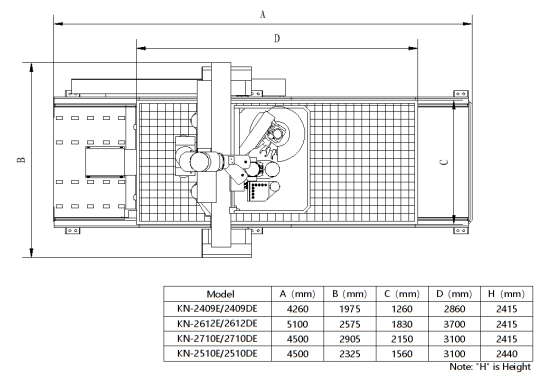

CNC Machine   LAYOUT DIMENSIONS



CNC Machine  parameters

STANDARD MACHINE PARAMETERS

STANDARD MODELS

PACKAGE SIZE(X Y Z) mm

GROSS WEIGHT(kg)

POWER(kW)

Working Pressure(MPa)

KN-2409DE

4290

2040

2220

3500

20

0.65

KN-2409E

4290

2040

2220

3500

18.3

0.65

KN-2612DE

5100

2680

2230

5000

25.5

0.65

KN-2612E

5100

2680

2230

5000

23.8

0.65

KN-2710DE

4500

3000

2230

5000

25.5

0.65

KN-2710E

4500

3000

2230

5000

23.8

0.65
