Brief: Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about Edging Saw Bottom saw, we hope to help you better understand of it.

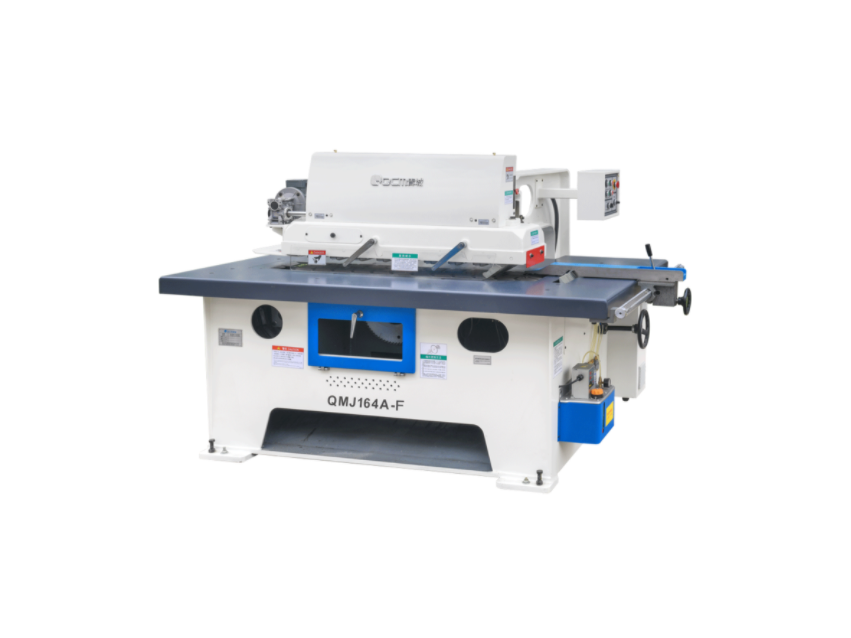

Edging Saw Bottom saw product usage

The product is mainly based on the majority of solid wood processing users to improve processing efficiency achieve efficient trimming of wood products. I Based on the original QMJ164AT versionthis one is the upgrade of a high-speed automatic slitting circular saw. It is mainly used for longitudinal cutting and trimming of medium soft plate.



Edging Saw Bottom saw  specification


QMJ164AF

Sawing thickness

10~120mm

The shortest cutting length

240mm

The deep of throat

660mm

Saw shaft speed

2950~4000r/min

Feeding speed

10~40m/min

Total motor power

13.6KW

Spindle power

11KW

Feeding motor

2.2KW

Roller box lifting motor

0.37KW

Saw shaft diameter

50.8mm

Outer diameter of chip pipe

L2000*W1160*H850mm

Mechanical dimensions

φ150 and φ120mm

Mechanical net weight

1950KG



This machine is with chain track feeding, and the feeding speed controlled by frequency inverter.



Note:all above picture and parameter are subject to the real product. We reserve the right to improve our product.
