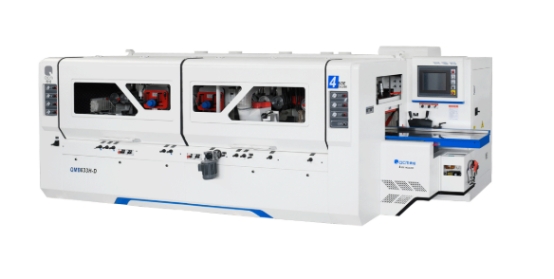

Four-side Moulder (6 spindles)
Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about four-side moulder 6 spindles, we hope to help you better understand of it.
Heavy-duty Four side moulder professional solution: four-side planing, heavy cutting for big wooden beams, etc. All spindles, diameter is Φ50mm. And all the horizontal spindles are with the hydraulic out-support bearing device. The feeding roller diameter is Φ180mm and the feeding worktable is alloy steel, so the machine can make the heavy-duty cutting and wear-resistance.
Four-side Moulder(6 spindles) Product description
1.equipped with HMI，precise, easy and quick operation.
2. Automatically adjust the working width and working height, through the touch screen .
3. Beam adopt the electric lifting, and the upper feeding wheels with cylinder pressure; feeding smooth and powerful.
4.All the horizontal spindles are equipped with outboard bearing supports, ensuring spindle running stable.
5. With the safety cover, reducing the noise and stopping the wood chip flying out; ensuring the safe operation.
6. The machine bed (frame)is made of iron casting, keeping stability, not easy to cause deformation.
7. Feeding speed change is controlled by inverter.
8.Main electric parts and transmission parts use international brands, such as Siemens and SKF bearings,etc。
9.Equipped with lubricators for worktable and sliding way lubricating
Four-side Moulder(6 spindles) Dimensions
Min.Working length (single/back-to-back)
Movable feed table travel
Movable basic side ruler travel
Upper feeding wheel Dia.
Front bottom planing cutter
Front bottom slotting cutter(D×H)
L/R vertical cutter
front/rear top cutter
rear bottom cutter
Front bottom spindle、R spindle、L spindle
front top spindle
Rear top spindle、rear bottom spindle、feeding motor
Beam lifting motor
Top spindle lifting motor
Dust outlet dia.
Collection system air need
Collection system air speed
Overall dimension L*W*H
Note:all above pictures and parameters are subject to the real product.
We reserve the right to improve our product.
