BriefSuzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about CNC Mortiser, we hope to help you better understand of it.



CNC Mortiser professional solutionmake mortise, fit for mass production of making dining table and chair, and other solid wood furniture, etc.

The machine adopts Numeric control system, double working position, imported linear guide rail, ball screw, hardened reducer and servo motor. The performance is stable, high effective and high precision.

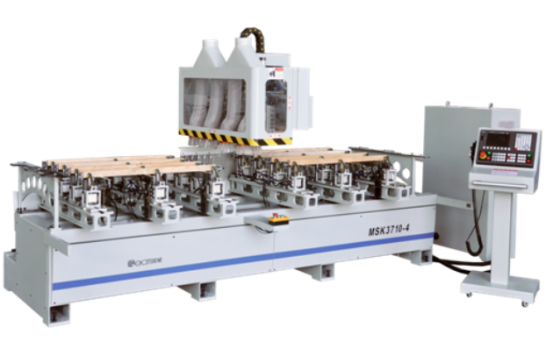

CNC Mortiser Product description

NO.

Item

Unit

MSK3710-4

1

 Max. width of mortise

mm

25

2

 Max. depth of mortise

mm

100

3

 X-axis trip

mm

2800

4

 Y-axis trip

mm

170

5

 Z-axis trip

mm

200

6

 Milling head QTY

pcs

4

7

 Cutter handle dia.

mm

Φ12.7

8

 Max. spindle speed

r/min

18000

9

 Max. moving speed

m/min

20

10

 Milling motor

KW

3.0×4

11

 X-axis motor

KW

1.5

12

 Y-axis motor

KW

1.0

13

 Z-axis motor

KW

1.0

14

 Air supply pressure

MPa

0.40

15

 Dust outlet

mm

Φ120×4

16

Air need of collection system

m3/min

120

17

Air speed of collection system

m/s

30~40

18

 Dimension

cm

360×164×210

19

 Weight

Kg

2200

For more details, please contact us.

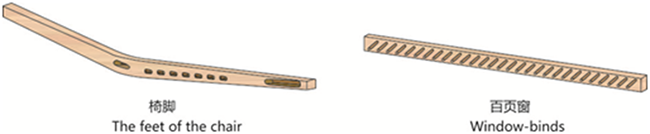

Here are some samples as below:






Note: all above pictures and parameters are subject to the real product. We reserve the right to improve the product.
