BriefSuzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about CNC Dovetail Tenoner, we hope to help you better understand of it.

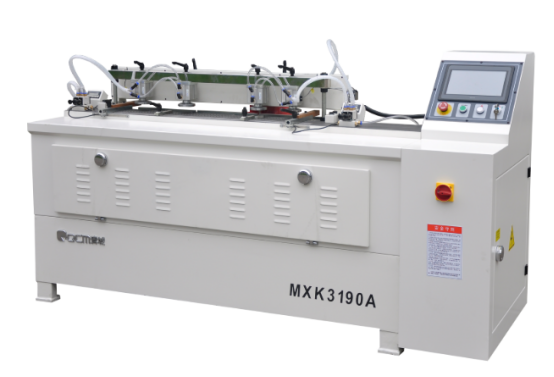

CNC Dovetail Tenoner Professional solutionmake double-end tenon, fit for making dining table and chair, and other solid wood furniture,etc. The machine body adopts integral high-quality cast iron,imported linear guide rail,ball screw, servo motor and inverter. It is good for machining variety workpiece.





CNC Dovetail Tenoner  Product description



NO.

Item

Unit

MXK3155A

MXK3170A

MXK3190A

1

working width

mm

500

700

900

2

working thickness

mm

12-25

12-25

12-25

3

spindle speed

r/min

18000

18000

18000

4

spindle QTY

Pcs

1

1

1

5

tenon distance

Mm

adjustable

adjustable

adjustable

6

spindle motor

KW

1.1

1.1

1.1

7

motor of X-axis

KW

0.75

0.75

1

8

motor of Y-axis

KW

0.75

0.75

0.75

9

cut circle

S

3-30

3-30

3-30

10

dimension

cm

170*75*125

202*920*116

202*92*116

11

weight

kg

600

680

750



For more details, please contact us.

Note: all above pictures and parameters are subject to the real product. We reserve the right to improve the product.
