Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about Automatic High Speed and Efficiency Edge Banding Machine , we hope to help you better understand of it.
full automatic high speed edge banding machine, pre-milling + quick-up gluing 1+5 wheels pressing 1 + quick-up gluing 2+ 5 wheels pressing 2 + double rail end cutting + fine trimming 1 + fine trimming 2 + high speed corner rounding + scraping 1+ scraping 2 + flat scraping + double running buffing 1+ double running buffing 2 + vertical hogging(equip with H model, horizontal hogging L is optional)
Automatic High Speed and Efficiency Edge Banding Machine Specifications：
1. Heavy frame structure machine body
2. Function upgrade, satisfy the request of edging and hogging
3. Double up gluing system (equip pre-melting, auto adding glue, reserve PUR port), can equip PUR glue machine as optional choice, switching EVA and PUR glue.
4. Double fine trimming, can improve tool working lifetime, using pneumatic control, can trimming with different kinds of radian.
5. Belt conveyor, the feeding speed is faster, improve the efficiency.
6. Heating lamp unit: setting at front of gluing, can pre-heating plate and make edging effect better.
7. Intelligent temperature control, can control machine glue temperature by touch screen setting,save electric power.
8. 7.5KW conveyor motor and equip automatic lubrication system, save time and improve efficiency.
9. Siemens electrical components
10. Visible adjustment for trimming and scraping, improve the accuracy.

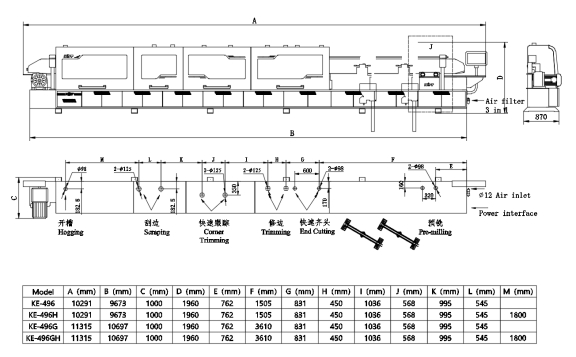

Automatic High Speed and Efficiency Edge Banding Machine LAYOUT DIMENSIONS
Automatic High Speed and Efficiency Edge Banding Machine parameters
STANDARD MACHINE PARAMETERS
PACKAGE SIZE(X Y Z) mm
