Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about Double-drill package six sides NC drilling center , we hope to help you better understand of it.
Double-drill package six sides NC drilling center has double-drill packages specification： for simultaneous processing and more efficiency. Single-handed operation, small workload, can be directly connected with a variety of split software. It is mainly used for six faces (hinge holes, through holes, semi-through holes) of various kinds of artificial boards, horizontal drilling, and can simultaneously process symmetrical hole positions, also can do hogging and milling with small spindles.
1、96mm min drilling distance between 2 drill bit package during simultaneous processing
2、With double gripper and long guide rail，gripper max speed up to 140m/min，auto detect hole position to avoid gripper exchange time. Gripper trip up to 5.5 meter，big board can working by one time catch，reduce processing time.
3、adopt double translation air flotation table，move flexibly according to the hole position to improve the drilling accuracy and avoid fouling at the bottom.
4、adopt double positioning mode，more accurate and efficient positioning of different panels.
5、adopt belt conveyor dust collection，centralized remove all dust which fall into machine.
6、Software can simulate processing path，predict the processing time；
7、Processing record statistics，view production progress in real time.
Double-drill package six sides NC drilling center has double-drill packages FEATURES
Drill package:UP:26V+12H BOTTOM:9V
Double translation air flotation table：can move flexibly according to the hole position to improve the drilling accuracy.
Belt conveyor dust collection：centralized remove all dust which fall into machine.
Processing record statistics：view production progress in real time.
Simulate processing path to predict processing time.
Scan label to recognize working file(standard with scan gun)

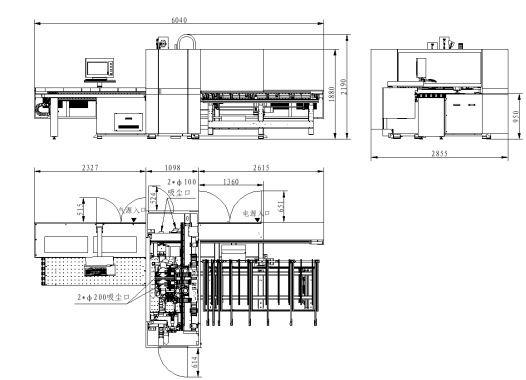

Double-drill package six sides NC drilling center has double-drill LAYOUT DIMENSIONS
Double-drill package six sides NC drilling center has double-drill parameters
STANDARD MACHINE PARAMETERS
PACKAGE SIZE(X Y Z) mm
