BriefSuzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about Straight Line Rip Saw(top saw) , we hope to help you better understand of it.

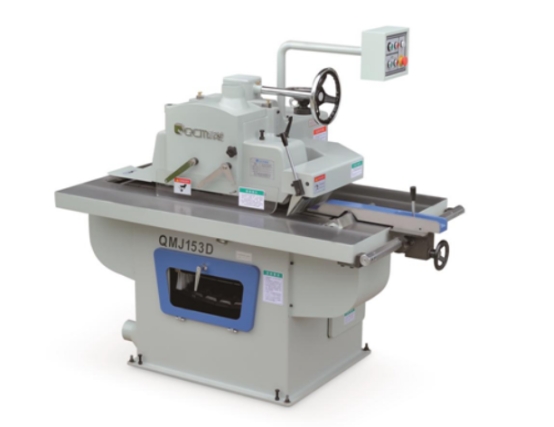

Straight Line Rip Saw(top saw) professional solution make multi-blade rip cut for thick wood. Heavy and stable machine bodyequipped with feeding crawler belt and V guide trackand the saw shaft is strong and rigiddoing the multi-slice rip

cut.



Straight Line Rip Saw(top saw) Product description

Max.cutting thickness

85mm

Min.sawing length

330mm

Throat depth

460mm

Spindle dia

25.4mm

Spindle speed

4000r/min

Saw blade dia

205---305mm

Feeding speed

12.51619.524m/min

Spindle power

7.5KW

Feeding motor

0.75KW

Worktable size

890×1380mm

Weight

950Kg

Overall dimension

170×110×158cm



Straight Line Rip Saw(top saw) descriptionThis machine is with chain track feeding, and the feeding speed change of it is by belt and pulley. But we have other models: QMJ153F with frequency inverter for feeding speed; QMJ153F-T with electric-lifting for pressure roller lifting; QMJ153S for processing short work-piece of min. length 150mm. Please ask for the details.



Note:all above pictures and parameters are subject to the real product. We reserve the right to improve the product.
