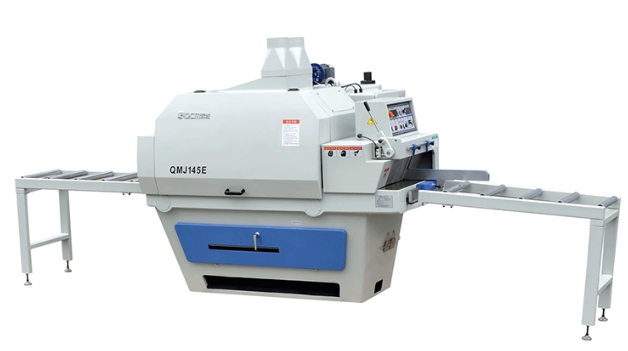

Automatic Multi-blade Rip Saw(top saw)
Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about Series Multi-blade Rip Saw(top saw), we hope to help you better understand of it.
Series Multi-blade Rip Saw（top saw）professional solution：make multi-blade rip cut for under 170mm thick wood. Heavy and stable machine body, and equipped with advanced v guide and chain plates, and the saw shaft with sufficient strength and rigidity, do the multi-slide rip cut.
Series Multi-blade Rip Saw(top saw) Product description
Item/Model | QMJ145E | QMJ145F | QMJ145H |
Working width(mm) | 350 | 350 | 500 |
Sawing thickness mm | 10-170 | 10-170 | 10-170 |
Minimum sawing length mm | 740 | 740 | 740 |
Speed of main saw r/min | 2600 | 2600 | 2600 |
Feeding speed m/min | 3-24 | 3-24 | 3-24 |
Total power kW | 59.75 | 59.75 | 81.25 |
Saw blade diameter mm | φ355-505 | φ355-505 | φ405-505 |
Saw spindle/sleeve dia.mm | φ60（φ80 sleeve） | φ60（φ80 sleeve） | φ60（φ80 sleeve） |
Number of saw blades | 4~15 | 4~15 | 4~15 |
Dust outlet dia.mm | φ150×2 | φ150×2 | φ150×2 |
Machine dimensions mm | 4460×1780×1870 | 4800×1780×1880 | 4850×2020×1880 |
Machine weight kg | 3500 | 3600 | 4250 |
Note: The above pictures and technical parameters are subject to change.
