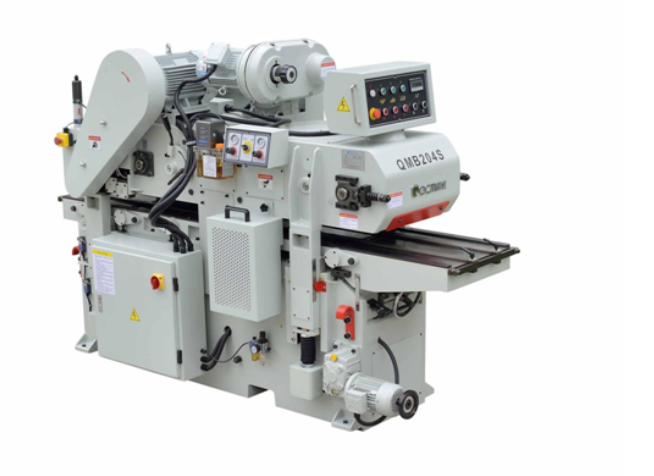

Double -side planer



Double-side wood working planer are equipped with a mechanism, specially for processing the short woods of min. Length 100mm. Two groups of active feeding rollers(upper ad bottom) are arranged in the outlet,improving the smooth flowing.

Double-side wood working planer professional solution: double-side planing,special for short wooden work-pieces, etc. The bottom cutter adopts the oblique structure, and the upper feed shafts are equipped with cylinder pressure mechanism. This machine makes full use of the short wooden pieces, increasing the wood utilization rate.





Double-side woodworking planer parameter

Working width

40MM~405mm

Working thickness

10~170mm

Min. working thickness of processing short piece

13mm

Min. working length

100mm

Min. width of processing short piece

50mm

Max. cut depth a time   top spindle

5mm

bottom spindle

3mm

Feeding speed

5.3~20m/min

Spindle speed

5800r/min

Cutter dia

φ90mm

Dust outlet dia.

 2×φ150mm

Top spindle motor

7.5kW

Bottom spindle motor.

4.0kW

Feeding motor.

2.2kW

Lifting motor.

0.75kW

Dimension(L×W×H)

252×92×178cm

Weight

2500Kg
