BriefSuzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about Horizontal Double-side Grooving & Tenoning Machine, we hope to help you better understand of it.







Horizontal Double-side Grooving & Tenoning Machinemake mortise, fit for mass production of making doordining table and chair, and other solid wood furniture, etc. The performance is stable, high effective and high precision.  The spindle adopts high speed heavy cutting structure , spindle speed up to 15000r/m.

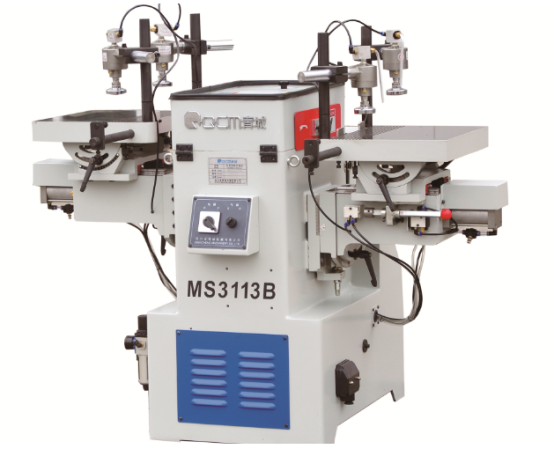

Horizontal Double-side Grooving & Tenoning Machine  Product description



NO.

Item

Unit

MS3113B

1

Max.length of mortise

mm

130

2

Max. depth of mortise

mm

60

3

Max. width of mortise

mm

16

4

Worktable lifting trip

mm

70

5

(left and right)Tilt angle of work table

-20°~+20°

6

(forward and backward)Tilt angle of work table

-5°~+25°

7

Spindle speed

r/min

15000

8

Hunting frequency

pcs/min

170-230

9

Motor power

kW

2.2

10

Working air pressure

Mpa

0.6

11

Overall dimension

cm

148*115*125

12

Weight

kg

550





For more details, please contact us.

Note: all above pictures and parameters are subject to the real product. We reserve the right to improve the product.
